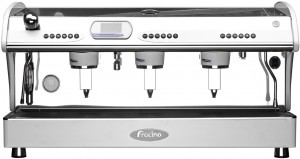

Fracino PID Coffee Machine

Product Description

[Key Features]

> Pressure controlled by a triple contact pressure switch.
> Automatic water level system with a probe, electronic control unit and solenoid valve.
> The pressure of water and steam is separately controlled by brass safety valves.
> Groups have a clearance of 120mm to allow for 10oz takeaway cups and 8oz latte glasses.
> Case, waste and cup tray are all made from stainless steel 304.
> Brass bodied group with stainless shower plate, solenoid valve and high pressure pump.
> Independent group boilers – nickel plated brass.
> Automatic on/off timer – machine can be set to turn on and off at set times.
> F.A.S.T steam system (on right) which can be used at the same time as the groups.
> Manual steam valve (on left) which can be used at the same time as the groups.
> Dual pressure gauge showing water and steam pressure.

[Control Features]

> Each group has an independent boiler for optimum temperature control – settable between 80-115°C – for example the user can set one group to 90°C and another to 95°C whilst still maintaining the standard boiler for water and steam.
> Group Boiler Temperatures accurate to +/-1°C
> Programmable pre-infusion times.
> Electronic hot water valve with programmable dispensing time – mixed hot water – temperature of water can be changed.
> Programmable shot volumes and built in shot timer.

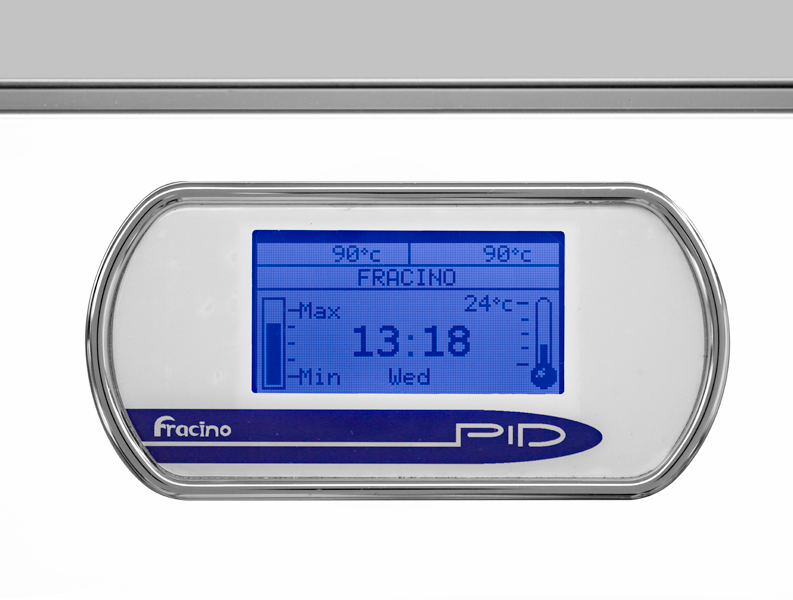

> LCD display shows current group temperatures, steam boiler temperature, time, machine status /diagnostics.
> Drinks counter – user can view the number of drinks made by each group.
> Service timer – can program number of shots before service is required, when reached a warning message appears in LCD.
> Water volume usage – can view amount of water used.
> Water filter – can program the amount of water used before filter needs replaced – a warning message appears in LCD.
> Latte & Cappuccino foam consistency adjustment and programmable milk temperature.
> Can change the colour of the LCD if required.
> Can change language of LCD – English, French, German, Italian & Spanish.

Brochure Download

Specification

Maintenance

At Coffitas we are very proud of our espresso coffee machines and we want you to feel the same. Each piece of equipment is hand built for quality and endurance. The machines are delivered and installed by a Coffitas Engineer giving your Fracino Espresso machine the very best start in life.

After the first year it is likely that you will want your equipment checked over and your water softener replaced (where required). The filter holder washers in the group heads will also need changing and the engineer would re-calibrate the equipment and take readings in order to compile a profile of your machine usage.

Following this visit it is advisable to request an Engineers visit around the same time each year in order to keep the machine in pristine condition and minimise the chances of unscheduled down-time. We can organise this for you at a time that is convenient to both yourself and the business.

An Engineer will carry out a full test and inspection on arrival and advise you of their findings and any work which would be required to be carried out.

All businesses are different and it is our duty to match our services with your individual requirements and budgets. Some people prefer to take advantage of planned and preventative maintenance whilst others rely solely on our emergency response service although we would always advise that prevention is better than cure.

We hold a huge stock of genuine spare parts to get your equipment up and running in no time.

Call us now on +353 (1) 442 9838 to discuss your service requirements or email us at sales@coffitas.com.

Technical Information

Coffitas are keen to ensure all new installations and servicing appointments run smoothly.

If you are planning to install one of our coffee machines please download the technical information provided by clicking on the relevant links below.

Installation Diagram
Pre-Installation Check Sheet
Service Requirements

Servicing

Our workshop boasts a wealth of skills and experience coupled with the latest cutting-edge equipment and technical expertise.

When it comes to service we really do have it all:

When you contact our Technical Support Team they will consider your particular circumstances and tailor a specific solution to your individual service requirements.

Call us today on +353 (1) 442 9838 or email us at sales@coffitas.com

Parts

Within the PARTS section of the website you can access parts descriptions, illustrations and parts numbers for all Fracino Machines. Just click on any of the machine names below and then scroll through to the applicable contents page. There you will find a parts breakdown with the appropriate parts numbers. Any order for SPARE PARTS for Fracino machines can be emailed to sales@coffitas.com   If  the part you require is not listed below please contact sales@coffitas.com or call +353 (1) 442 9838.

Technical Diagrams & Parts Lists
